Container API

Container APIs are those APIs used to get Test Object from the model, or APIs that generate objects through attributes in descriptive programming, as follows:

type definition file

JavaScript
export interface IWinContainer {
   /* get a single object */
   getButton(objectName:string, property?: Criteria): IWinButton;
   getButton(property: Criteria): IWinButton;
   getEdit(objectName:string, property?: Criteria): IWinEdit;
   getEdit(property: Criteria): IWinEdit;
   // ... //
   // ... //
   // ... //

   /* get multiple objects */
   findControls(objectName:string, property?: Criteria): Promise<IWinControl[]>;
   findControls(property: Criteria): Promise<IWinControl[]>;

}

Control filter condition Criteria class

CukeTest uses the Criteria object as a condition to filter the controls in the current environment to obtain the target control and operate it.

JavaScript
Python
interface Criteria {
   accessKey?: string;
   attachedtext?: string;
   automationId?: string;
   boundingRectangle?: string;
   className?: string;
   className~?: string;
   helptext?: string;
   hwnd?: number;
   index?: number;
   name?: string;
   name~?: string;
   text?: string;
   text~?: string;
   value?: string;
   value~?: string;
   processid?: number;
   type?: ControlType
   title?: string;
   url?: string;
}
class Criteria():
	accessKey: str
	appName: str
	attachedtext: str
	automationd: str
	className: str
	index: int
	helptext: str
	hwnd: int
	name: str
	processid: int
	type: str
	title: str
	url: str

As can be seen from the definition of the above control option type, you can pass in an object name; you can also pass in an object representing identification attribute; at the same time pass in object name and identification Attribute is also available.

Internally, the Get Object API behaves differently for the object name and the identifying property:

  1. Only pass in the object name: Read the identification attribute in the target Test Object in the model. If it does not exist in the model file, an error of could not find the test object in the model file is thrown1009:CannotFindTestObjectInModel.
  2. Only pass in identification attributes: Match all controls that meet the conditions in the tested application and return them. Except for the findControls() method, all object acquisition APIs only return the first visible control that meets the conditions. If there is no Controls that meet the conditions return null.
  3. Pass in the object name and identification attributes at the same time: the test object will be used to match the target control in the application under test and return it. Except for the findControls() method, all object acquisition APIs will only return the first one that satisfies the conditions. Visible **control. Returns null if a control is matched or there is no control that satisfies the condition.

Use fuzzy matching (regular expression matching) to get controls

Observing the Criteria object used to get the object, you can find that there are several special attributes in it, they are suffixed with ~, and there are attributes with the same name in the Criteria object.
These attributes with a ~ suffix mean that these attributes allow fuzzy matching, or regular matching. You can manually enable fuzzy matching for controls in the Model Manager. You can also Use the following method to match in the script:

JavaScript
Python
// full text match
await model.getButton({"name": "number5"}).click();
// Matches all controls whose name attribute contains "number"
await model.getButton({"name~": "number"}).click();
// Matches all controls whose name attribute ends with "5"
await model.getButton({"name~": "number$"}).click();
# full text match
model.getButton({"name": "数字5"}).click()
# Matches all controls whose name attribute contains "number"
model.getButton({"name~": "数字"}).click()
# Matches all controls whose name attribute ends with "5"
model.getButton({"name~": "数字$"}).click()

These attributes can be directly generated in the model manager through the "[Copy Node Attribute]" function, and do not necessarily need to be manually constructed.

get[ControlType]

CukeTest provides a method for each control type, which returns Test Object for this type of control. For example, the button control Button can be passed to getButton method, the list view control List can be obtained by getList method.

After these API objects are called, another sub-container object is returned, which means that these container APIs can be cascaded to these objects to obtain objects at a deeper level of the control tree.

conditions have the following two types of parameters:

  1. object name，string，Is the name of an object in the model file. At runtime, the identification properties in the object will be obtained from the model and used for filtering.
  2. Identification attribute，Object，Contains multiple key/value pairs. These properties are used for filtering to filter out objects that meet all conditions. If an object name is specified at the same time, it will be concatenated and override (same field) the identified properties in the model to filter.

The calling methods are as follows:

Default: only the object name is passed in

Only provide the object name to the get[ControlType] method, and the calling format is as follows:

JavaScript
Python
await model.getButton("5").click();
model.getButton("5").click()

Since this calling method is based on the object model, it is first necessary to detect and add the control in the model manager.

Descriptive programming: only pass in the identification attribute object

In declarative programming, you can directly construct objects from properties without loading the model. The optional values ​​​​of these properties refer to Criteria class.

JavaScript
Python
const { WinAuto } = require('leanpro.win');

await WinAuto.getWindow({
   "className": "ApplicationFrameWindow",
   "title": "calculator ‎"
}).getWindow({
   "className": "Windows.UI.Core.CoreWindow",
   "title": "calculator"
}).getGeneric({
   "type": "Group",
   "automationId": "NumberPad",
   "name": "numeric keypad"
}).getButton({
   "automationId": "num5Button"
}).click();
from leanproAuto import Auto
Auto.getWindow({
   "className": "ApplicationFrameWindow",
   "title": "calculator ‎"
}).getWindow({
   "className": "Windows.UI.Core.CoreWindow",
   "title": "calculator"
}).getGeneric({
   "type": "Group",
   "automationId": "NumberPad",
   "name": "numeric keypad"
}).getButton({
   "automationId": "num5Button"
}).click()

In the above example, each call is passed an object parameter, which contains multiple key/value pairs, which are combined to form filter conditions to find objects.

For more information about the development of the description mode, please refer to Description Mode.

Mixed mode: pass in object name and object properties at the same time

In the default mode, the first parameter is the object name, and then the second parameter is passed in to become a mixed mode. The second parameter indicates the identification attribute, and the optional value refers to Criteria class.

  1. The object name parameter is used to get the object from the model and its identifying properties in the model;
  2. The identification attribute parameter is used to cover or supplement the identification attribute on the object, and then the formed attribute set is used to find the object. For example, if the call is overridden with the following usage:

JavaScript
Python
await model.getButton("5", {automationId: "num6Button"}).click();
model.getButton("5", {automationId: "num6Button"}).click()

Then the clicked button is "6" on the calculator instead of "5", because the automationId has been overwritten by the second parameter to a new value. The container object API is synchronous, which means that there is no need to use await when calling prefix.

The following call is complementary usage:

JavaScript
Python
await model.getButton("Button", {index: 2}).click();
model.getButton("Button", {index: 2}).click()

It will click the matched third Button control (assuming that 3 or more controls can be matched).

findControls

JavaScript
findControls(objectName:string, property?: Criteria): Promise<IWinControl[]>;
findControls(property: Criteria): Promise<IWinControl[]>;
There are two ways to call, you can choose to pass in a model object name objectName, or a filter object Criteria.

It returns all control objects that meet the conditions in the form of an array. It can obtain all matching controls on the application in real time according to the incoming conditions, and return a Promise of the object array. This API can be used when there are multiple similar controls on the interface. Return this set of objects at the same time, so as to operate on all these corresponding controls.

The findControls method is often used in the following scenarios:

Scenario 1: There is a set of controls for collection operations

For example, there is a group of CheckBox controls on the interface, and they all need to be selected. Take the built-in sample SimpleStyles as an example:

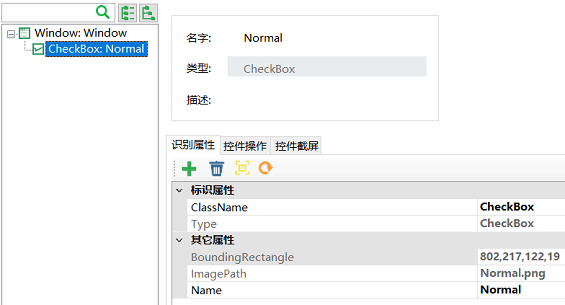

  1. In order to mark all the above checkboxes as selected, you can first add the following model objects:

    Note that the "Name" attribute has been removed from the identity attribute to match all CheckBox objects.

  2. Use this object in the findControls call,

JavaScript
(async function() {
    let controls = await model.findControls("Normal");
    console.log('controls', controls.length) //Match the number of controls
    for(let control of controls) {
        console.log(await control.name()); //print checkbox name
        await control.check(); //Check the checkbox control
    }
})()

Appendix: Complete Type Definitions

In the types file, the type definition for the container object:

JavaScript
Python
export interface IWinContainer {
    findControls(...conditions: ConditionFilter[]): Promise<IWinControl[]>;
    getWindow(...conditions: ConditionFilter[]): IWinWindow;
    getButton(...conditions: ConditionFilter[]): IWinButton;
    getCheckBox(...conditions: ConditionFilter[]): IWinCheckBox;
    getComboBox(...conditions: ConditionFilter[]): IWinComboBox;
    getCustom(...conditions: ConditionFilter[]): IWinCustom;
    getDataItem(...conditions: ConditionFilter[]): IWinControl;
    getDataGrid(...conditions: ConditionFilter[]): IWinDataGrid
    getDocument(...conditions: ConditionFilter[]): IWinDocument;
    getEdit(...conditions: ConditionFilter[]): IWinEdit;
    getGeneric(...conditions: ConditionFilter[]): IWinGeneric;
    getImage(...conditions: ConditionFilter[]): IWinImage;
    getList(...conditions: ConditionFilter[]): IWinList;
    getListItem(...conditions: ConditionFilter[]): IWinListItem;
    getMenuBar(...conditions: ConditionFilter[]): IWinMenuBar;
    getMenuItem(...conditions: ConditionFilter[]): IWinMenuItem
    getMenu(...conditions: ConditionFilter[]): IWinMenu;
    getPane(...conditions: ConditionFilter[]): IWinPane;
    getRadioButton(...conditions: ConditionFilter[]): IWinRadioButton;
    getScrollBar(...conditions: ConditionFilter[]): IWinScrollBar;
    getSlider(...conditions: ConditionFilter[]): IWinSlider;
    getSpinner(...conditions: ConditionFilter[]): IWinSpinner;
    getTab(...conditions: ConditionFilter[]): IWinTab;
    getTabItem(...conditions: ConditionFilter[]): IWinTabItem;
    getTable(...conditions: ConditionFilter[]): IWinTable;
    getTree(...conditions: ConditionFilter[]): IWinTree;
    getTreeItem(...conditions: ConditionFilter[]): IWinTreeItem;
    getText(...conditions: ConditionFilter[]): IWinText;
    getVirtual(...conditions: ConditionFilter[]): IWinVirtual
}

export type ConditionFilter = string | Criteria;

interface Criteria {
   accessKey?: string;
   attachedtext?: string;
   automationId?: string;
   boundingRectangle?: string;
   className?: string;
   helptext?: string;
   hwnd?: number;
   name?: string;
   processid?: number;
   type?: ControlType
   title?: string;
   url?: string;
}
class WinContainer():
	def getWindow(*conditions: List[Union[str, Dict]]) -> "WinWindow"
	def getButton(*conditions: List[Union[str, Dict]]) -> "WinButton"
	def getCheckBox(*conditions: List[Union[str, Dict]]) -> "WinCheckBox"
	def getComboBox(*conditions: List[Union[str, Dict]]) -> "WinComboBox"
	def getCustom(*conditions: List[Union[str, Dict]]) -> "WinCustom"
	def getDataItem(*conditions: List[Union[str, Dict]]) -> "WinTableCell"
	def getDataGrid(*conditions: List[Union[str, Dict]]) -> "WinDataGrid"
	def getDocument(*conditions: List[Union[str, Dict]]) -> "WinDocument"
	def getEdit(*conditions: List[Union[str, Dict]]) -> "WinEdit"
	def getGeneric(*conditions: List[Union[str, Dict]]) -> "WinGeneric"
	def getHyperlink(*conditions: List[Union[str, Dict]]) -> "WinHyperlink"
	def getmage(*conditions: List[Union[str, Dict]]) -> "WinImage"
	def getList(*conditions: List[Union[str, Dict]]) -> "WinList"
	def getListtem(*conditions: List[Union[str, Dict]]) -> "WinListItem"
	def getMenuBar(*conditions: List[Union[str, Dict]]) -> "WinMenuBar"
	def getMenuItem(*conditions: List[Union[str, Dict]]) -> "WinMenuItem"
	def getMenu(*conditions: List[Union[str, Dict]]) -> "WinMenu"
	def getPane(*conditions: List[Union[str, Dict]]) -> "WinPane"
	def getRadioButton(*conditions: List[Union[str, Dict]]) -> "WinRadioButton"
	def getScrollBar(*conditions: List[Union[str, Dict]]) -> "WinScrollBar"
	def getSlider(*conditions: List[Union[str, Dict]]) -> "WinSlider"
	def getSpinner(*conditions: List[Union[str, Dict]]) -> "WinSpinner"
	def getTab(*conditions: List[Union[str, Dict]]) -> "WinTab"
	def getTabItem(*conditions: List[Union[str, Dict]]) -> "WinTabItem"
	def getTable(*conditions: List[Union[str, Dict]]) -> "WinTable"
	def getTableRow(*conditions: List[Union[str, Dict]]) -> "WinTableRow"
	def getTableCell(*conditions: List[Union[str, Dict]]) -> "WinTableCell"
	def getToolBar(*conditions: List[Union[str, Dict]]) -> "WinToolBar"
	def getTree(*conditions: List[Union[str, Dict]]) -> "WinTree"
	def getTreeItem(*conditions: List[Union[str, Dict]]) -> "WinTreeItem"
	def getTreeCell(*conditions: List[Union[str, Dict]]) -> "WinTreeCell"
	def getText(*conditions: List[Union[str, Dict]]) -> "WinText"
	def getVirtual(*conditions: List[Union[str, Dict]]) -> "Virtual"
	def getPattern(*conditions: List[Union[str, Dict]]) -> "Pattern"

class Criteria():
	accessKey: str
	appName: str
	attachedtext: str
	automationd: str
	className: str
	index: int
	helptext: str
	hwnd: int
	name: str
	processid: int
	type: str
	title: str
	url: str

In fact, all get object APIs actually have an equivalent way of writing:

JavaScript
Python
model.getWindow("NotePad");
// can write
model.getGeneric("NotePad", {type: "Window"})
model.getWindow("NotePad")
# can write
model.getGeneric("NotePad", {type: "Window"})
However, the type of the control object returned by the latter is the base class, so script intelligence prompts will not appear methods of the Window control type.
